Lithium Battery | Revolution Power | 12v 100Ah Ultra Slim Lithium Battery
Product Details

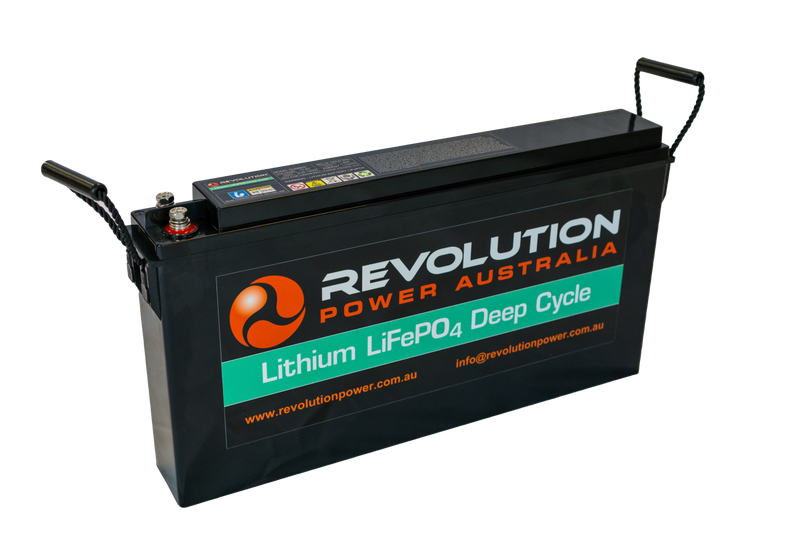

The Revolution Power 12v 100Ah Ultra Slim Lithium Battery packs 100Ah of usable LiFePO4 capacity into a slimline 500 x 75 x 260mm profile. Available with an optional mounting bracket (sold separately as RPL12-100USlimMB), it's designed for installs where a full-height battery won't fit — Behind Back seats, under seats, in tight under-floor trays, and purpose-built slim battery enclosures. The IP67-rated case handles exposure to dust and water in demanding environments.
A custom fit for your vehicle — 11 vehicle-specific battery trays available. See fitment options ↓
Key Features
- 100Ah / 1280Wh usable capacity — full usable rating, not derated — what you see is what you get
- 100A continuous / 250A peak discharge — handles high-draw loads including inverters, winches, and compressors without voltage sag
- IP67 rated enclosure — dustproof and jet-water resistant
- Slimline form factor (500 x 75 x 260 mm) — designed for space-constrained installs where a standard battery case won't fit
- 12.5kg — lightweight compared to an equivalent AGM battery
- M8 terminals — compatible with standard 4WD, caravan, and marine cable terminations
- Integrated BMS — protects against overcharge, over-discharge, cell imbalance, and temperature extremes — short-circuit response in 200–500µs
Technical Specifications
| Nominal Voltage | 12.8V |
|---|---|
| Total Capacity | 125Ah |
| Usable Capacity | 100Ah / 1280Wh |
| Cell Chemistry | LiFePO4 |
| Cell Rating | 1C |
| Max Continuous Discharge | 100A |
| Peak Discharge | 250A |
| Discharge Cutoff Voltage | 10V |
| Nominal Charge Current | 20A |
| Recommended Charge Current | ≤ 30A |
| Max Charge Current | 50A |
| Recommended Charge Voltage | 14.6V ± 0.2V |
| BMS Charge Cutoff | 15.6V |
| Cycle Life (50% DoD) | 5,000 cycles |
| Cycle Life (20% DoD) | 8,000 cycles |
| Dimensions (L×W×H) | 500 x 75 x 260 mm |
| Weight | 12.5kg |
| IP Rating | IP67 |
| Terminal Type | M8 |
| Case Material | Fire Retardant ABS |
| Self-Discharge Rate | ≤ 3% per month |
| Short-Circuit Protection | 200–500µs |
| Charge Temperature | 0 ~ 45°C |
| Discharge Temperature | -20 ~ 60°C |
| Storage Temperature | -20 ~ 40°C |
| Certifications | ISO9001, CE, RoHS, UN38.3, SGS Audited, Intertek Audited, IEC 62619 |
| CAN Bus | No |
| Warranty | 5 Years Replacement |
Use Cases
Under-Seat & Space-Constrained Installs
The slim profile opens up install locations that a standard 100Ah battery can't fit — under 4WD rear seats, in slim under-floor slide-out trays in caravans, and in motorhomes where floor space is premium. Despite the reduced footprint, it delivers full 100Ah usable capacity with no compromise on cycle life or BMS protection.
Caravan & Motorhome Secondary Bank
Where the main battery bank is a larger unit, the Ultra Slim works well as a secondary bank for specific loads — a dedicated 12V fridge circuit, a secondary lighting run, or a backup system for communications equipment. The mounting bracket option (RPL12-100USlimMB) allows secure vertical or horizontal installation.
Marine Auxiliary Power
In smaller vessel applications where every centimetre of storage space counts, the slimline design allows fitment in lockers, under-seat compartments, and alongside existing marine electrical systems without the depth penalty of a standard battery.
Why Revolution Power Australia
Revolution Power Australia is a Queensland-based manufacturer and supplier of advanced LiFePO4 batteries designed and engineered for Australian conditions. All batteries are backed by a 5-year replacement warranty and direct technical support from our team.
⭳ Download Technical Datasheet
Partner Fitment Range
Vehicle-Specific Battery Trays by JBA Fabrications
Revolution Power has partnered with JBA Fabrications, an Australian fabricator who design and build vehicle-specific mounting trays purpose-made for this Ultra Slim battery. Find your make and model below and order your tray direct from JBA:
Toyota
- LandCruiser 300 Series 11/21+ Slimline Battery Tray
- LandCruiser 250 Series Slimline Battery Tray
- LandCruiser 250 Series 11/24+ Rear Quarter Panel Battery/Compressor Tray
- LandCruiser 200 Series 09/15–10/21 Slimline Battery Tray
- LandCruiser 70 Series 09/12+ Dual Cab Slimline Battery Tray
- Hilux N80 09/15–06/25 Dual Cab Slimline Battery Tray
- Hilux N90 07/25+ Dual Cab Slimline Battery Tray
Nissan
Ford
Isuzu / Mazda
Mitsubishi
Trays are sold and fulfilled directly by JBA Fabrications. Can't see your vehicle? Browse the full range at jbaf.com.au.
