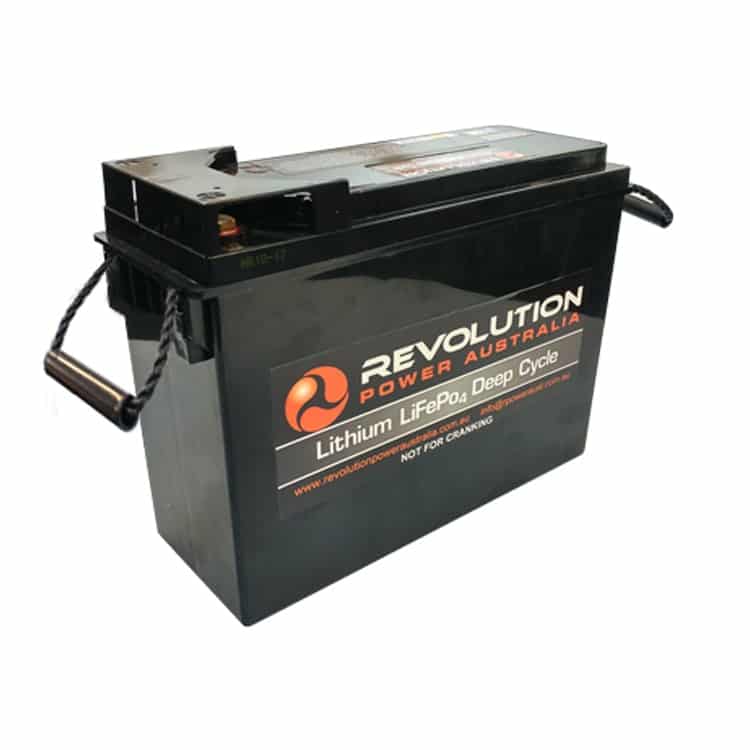

Lithium Battery | Revolution Power | 12v 60Ah Slimline High Draw Lithium Battery
Product Details
The Revolution Power 12v 60Ah Slimline High Draw Lithium Battery is engineered for installs where space is the limiting factor. Its slim 291 x 106 x 223mm profile fits under seats, in tight battery trays, and behind panels where a standard battery box won't. Despite its compact footprint, it delivers 60Ah usable capacity with a high-draw cell rating — capable of handling inverter loads and high-current 12V equipment.
Key Features
- 60Ah / 768Wh usable capacity — full usable rating, not derated — what you see is what you get
- 85A continuous / 120A peak discharge — handles high-draw loads including inverters, winches, and compressors without voltage sag — 2C cell rated
- IP65 rated enclosure — dustproof and jet-water resistant — suitable for under-bonnet, engine bay, and exposed marine installs
- Slimline form factor (291 x 106 x 223mm) — designed for space-constrained installs where a standard battery box won't fit
- 8.0kg — lightweight compared to an equivalent AGM battery
- M6 terminals — compatible with standard 4WD, caravan, and marine cable terminations
- Integrated BMS — protects against overcharge, over-discharge, cell imbalance, and temperature extremes — short-circuit response in 200–500µs
Technical Specifications
| Nominal Voltage | 12.8V |
|---|---|
| Total Capacity | 75Ah |
| Usable Capacity | 60Ah / 768Wh |
| Cell Chemistry | LiFePO4 |
| Cell Rating | 2C |
| Max Continuous Discharge | 85A |
| Pulse Discharge | 100A |
| Peak Discharge | 120A |
| Discharge Cutoff Voltage | 10.0V |
| Nominal Charge Current | 20A |
| Recommended Charge Current | ≤ 30A |
| Max Charge Current | 30A |
| Recommended Charge Voltage | 14.6V ± 0.2V |
| BMS Charge Cutoff | 15.6V |
| Cycle Life (50% DoD) | 5,000 cycles |
| Cycle Life (20% DoD) | 8,000 cycles |
| Dimensions (L×W×H) | 291 x 106 x 223mm |
| Weight | 8.0kg |
| IP Rating | IP65 |
| Terminal Type | M6 |
| Case Material | Fire Retardant ABS |
| Self-Discharge Rate | ≤ 3% per month |
| Short-Circuit Protection | 200–500µs |
| Charge Temperature | 0 ~ 45°C |
| Discharge Temperature | -20 ~ 60°C |
| Storage Temperature | -20 ~ 40°C |
| Certifications | ISO9001, CE, RoHS, UN38.3, SGS Audited, Intertek Audited |
| CAN Bus | No |
| Warranty | 5 Years Replacement |
Use Cases
Under-Seat & Space-Constrained Installs
The slim profile opens up install locations that a standard 100Ah battery can't fit — under 4WD rear seats, in slim under-floor slide-out trays in caravans, and in motorhomes where floor space is premium. Despite the reduced footprint, it delivers full 100Ah usable capacity with no compromise on cycle life or BMS protection.
Caravan & Motorhome Secondary Bank
Where the main battery bank is a larger unit, the Ultra Slim works well as a secondary bank for specific loads — a dedicated 12V fridge circuit, a secondary lighting run, or a backup system for communications equipment. The mounting bracket option (RPL12-100USlimMB) allows secure vertical or horizontal installation.
Marine Auxiliary Power
In smaller vessel applications where every centimetre of storage space counts, the slimline design allows fitment in lockers, under-seat compartments, and alongside existing marine electrical systems without the depth penalty of a standard battery.
Why Revolution Power Australia
Revolution Power Australia is a Queensland-based manufacturer and supplier of advanced LiFePO4 batteries designed and engineered for Australian conditions. All batteries are backed by a 5-year replacement warranty and direct technical support from our team.
