Lithium Battery | Revolution Power | 24v 200Ah High Draw Lithium Battery
Product Details

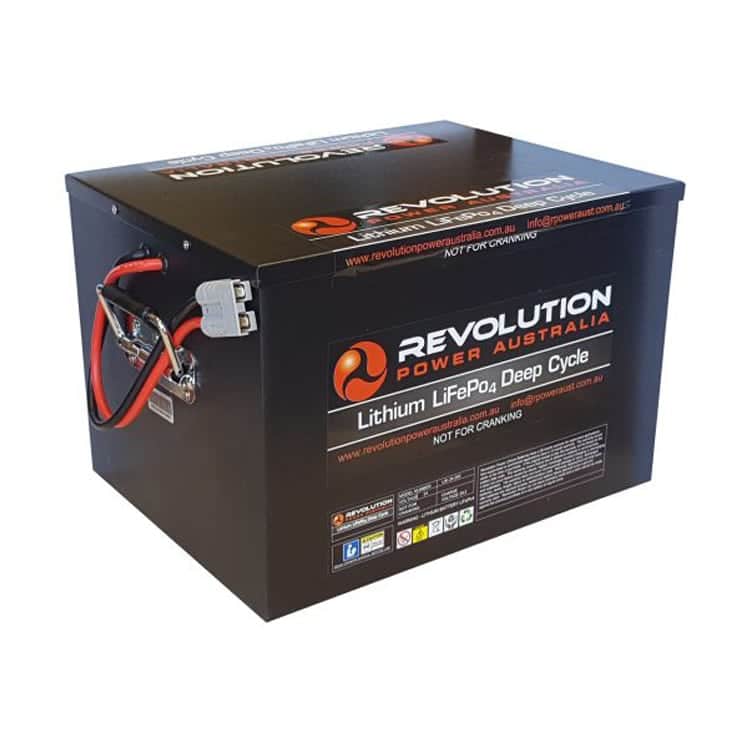

The Revolution Power 24v 200Ah High Draw Lithium Battery is a heavy-duty energy storage solution built for demanding 24V applications. Housed in a metal enclosure with Anderson Plug connections, it's designed for high-current environments including large inverters, commercial vehicles, and off-grid power systems where robustness and discharge performance are the priority.
Key Features
- 200Ah usable capacity — full usable rating, not derated — what you see is what you get
- 100A continuous discharge — stable output for sustained loads
- IP54 rated enclosure — splash-proof and dust-resistant
- 50.0kg — lightweight compared to an equivalent AGM battery
- Anderson Plug terminals — compatible with standard 4WD, caravan, and marine cable terminations
- Integrated BMS — protects against overcharge, over-discharge, cell imbalance, and temperature extremes
- 5-Year Replacement Warranty — Australian-backed, direct from Revolution Power
Technical Specifications
| Nominal Voltage | 24V |
|---|---|
| Total Capacity | 250Ah |
| Usable Capacity | 200Ah |
| Cell Chemistry | LiFePO4 |
| Max Continuous Discharge | 100A |
| Weight | 50.0kg |
| IP Rating | IP54 |
| Terminal Type | Anderson Plug |
| Case Material | Metal Enclosure |
| Charge Temperature | 0 ~ 45°C |
| Discharge Temperature | -20 ~ 60°C |
| Certifications | ISO9001, CE, RoHS, UN38.3 |
| CAN Bus | No |
| Warranty | 5 Years Replacement |
Use Cases
24V Off-Grid Solar Storage
24V systems are widely used in larger off-grid solar installations because higher voltage reduces current, meaning smaller cable cross-sections and lower resistive losses across long cable runs. Paired with a quality MPPT solar charge controller, this battery stores solar energy efficiently and delivers it at stable voltage for the full discharge cycle.
Large Inverter Systems
Running a 2,000W or 3,000W inverter at 12V requires very high current — 24V halves that current at the same power output. This battery is well suited to 24V inverter-based systems in large motorhomes, remote cabins, and commercial vehicles where appliance loads exceed what a 12V architecture can cleanly supply.
Marine & Commercial Vehicles
Many commercial vessels and larger workboats operate on 24V electrical systems. This battery integrates directly into existing 24V architectures for bow thruster power, anchor windlass operation, and auxiliary electronics — with higher energy density and lower weight than an equivalent lead-acid bank.
Why Revolution Power Australia
Revolution Power Australia is a Queensland-based manufacturer and supplier of advanced LiFePO4 batteries designed and engineered for Australian conditions. All batteries are backed by a 5-year replacement warranty and direct technical support from our team.
